Description
CL-317B

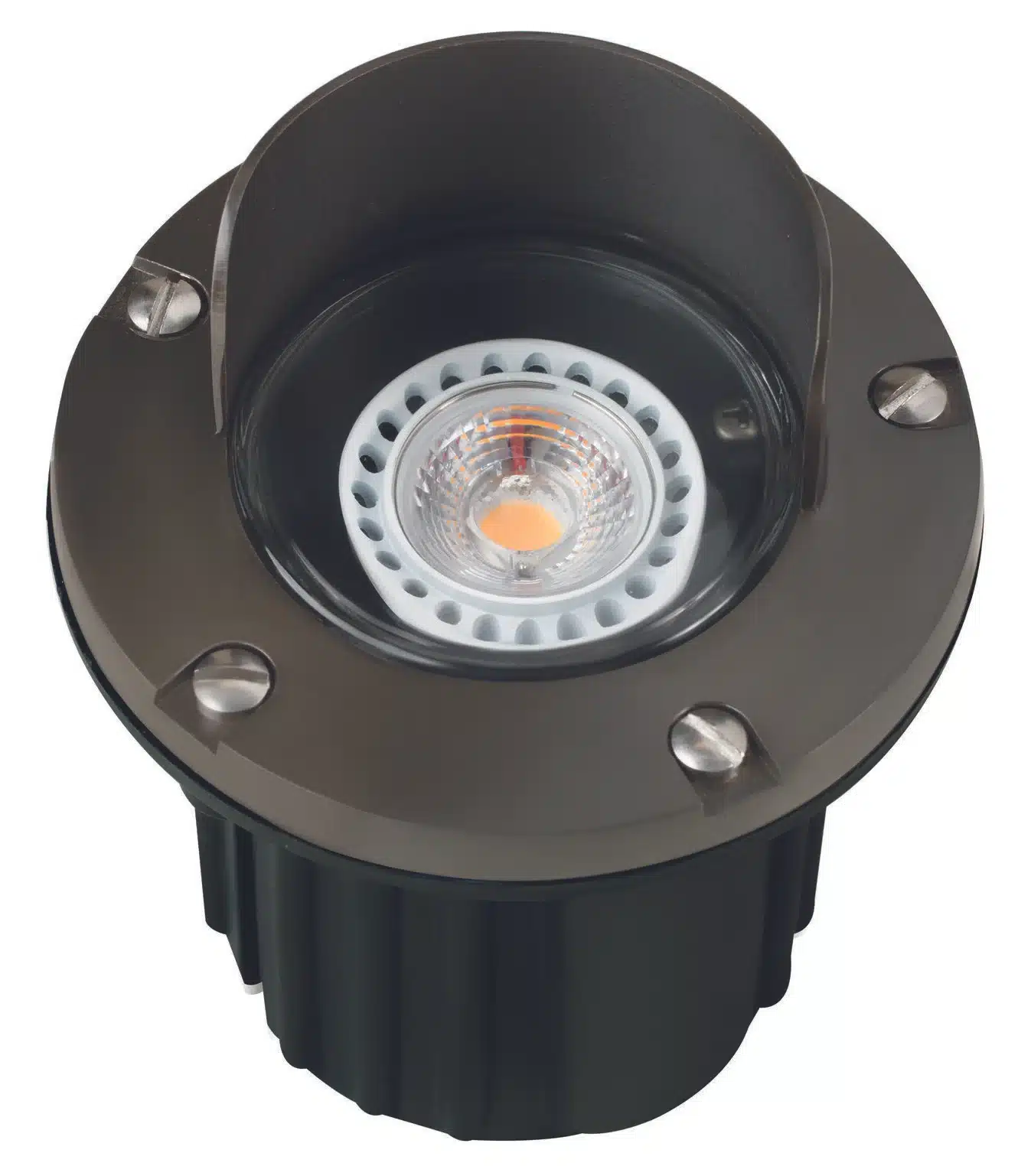

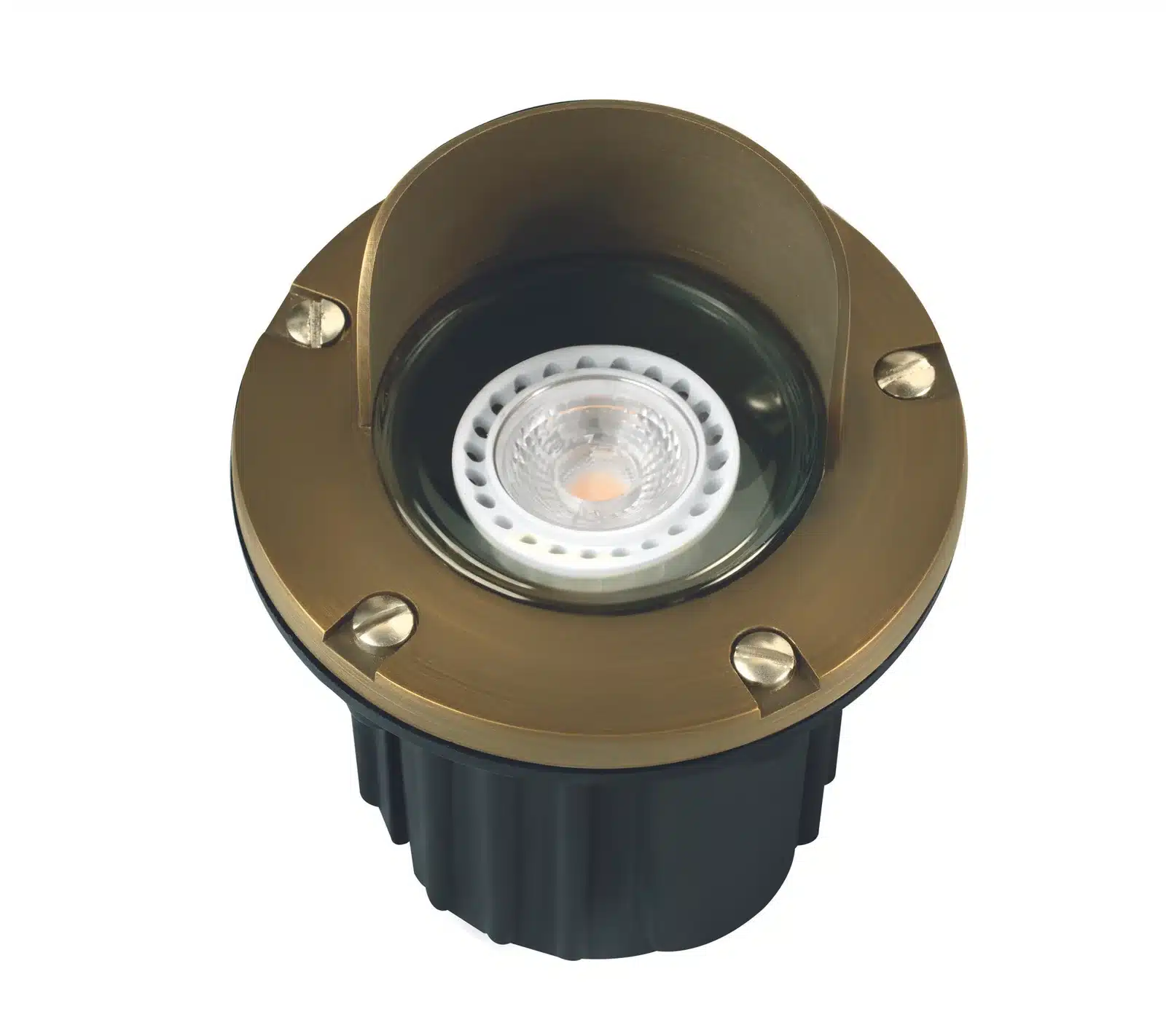

Cast Brass Hooded Well Light Housed with a Black Injection-molded Composite Base Finished in Antique Bronze or Gun Metal.
Material: Brass
Description: Brass Hooded Well Light
Lamp Type: MR-16
Mounting Supplied: Direct Burial
Grade: Architectural

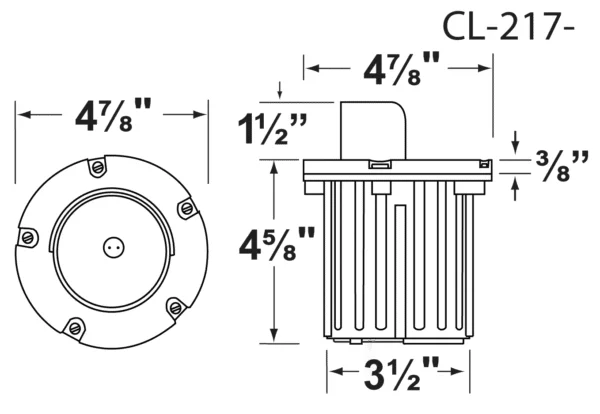

Size: 4⅞” Dia x 6⅛“ Deep
Housing : Injection molded composite for high UV stability.
FACEPLATE : Diecast brass, fitted to housing with silicone “O” ring gasket
Lens : Clear and heat resistant flat glass.
Socket : Top grade ceramic bi-pin socket with retention clip
Lamp : 12V, MR-16 LED Available in 5W Bluetooth mesh smart RGB-WW; 3.5W, 5W, 6W LED or without lamp. Find lamp tab above for more information.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : In-ground direct burial or concrete encasement. For best results when mounting in concrete, use the concrete pour kit (CX-237)
Electrical : Voltage range for BT/LED lamps are 9V-17V. Remote 12 Volt transformer is required. See transformers page for our line of options.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
