Step Light CL-349B by Corona Lighting Products

$131.63$169.74

Description

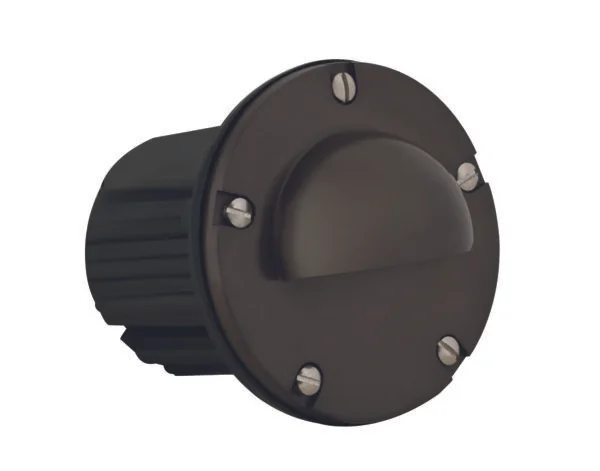

Step Light CL-349B

HOUSING: Injected molded composite for high UV stability. FACEPLATE: Diecast brass, fitted to housing with silicone “O” ring gasket. FACEPLATE FINISH: AB-Antique Bronze. Natural toning process. AB finish will vary due to artistic process GM-gun Metal LENS: Frosted and heat resistant flat glass. SOCKET: Top grade adjustable ceramic bi-pin socket with retention clip click to enlarge image and teflon-jacketed wire lead. LAMP: 12V, MR-16 halogen, 50W max.

L-BAB-C20 (20w) standard. See specification sheet for available LED lamps. GASKET: Silicone “0” ring seals faceplate to housing providing weather tight protection. MOUNTING: In-ground direct burial or concrete encasement WIRING: Fixture is prewired with a 3-ft 18-2 SJT-W direct burial cord. Wire connector available seperately. Gel filled wire nut CX-854 may be ordered to Corona Lighting WARRANTY Limited lifetime warranty on fixture Brass face plate and ten (10) years on housing against manufacturer’s defects.


Electrical Notes: Voltage Ranges are: 11V -12.5 (halogen) 9V-17V(LED) . Remote 12 Volt transformer is required. Advanced Features: The Fixture’s socket can be tilted ± 25° for adjustable light aiming. Well-Socket-tilt_small


View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions


Additional information

Weight 4 lbs
Corona Finish Options

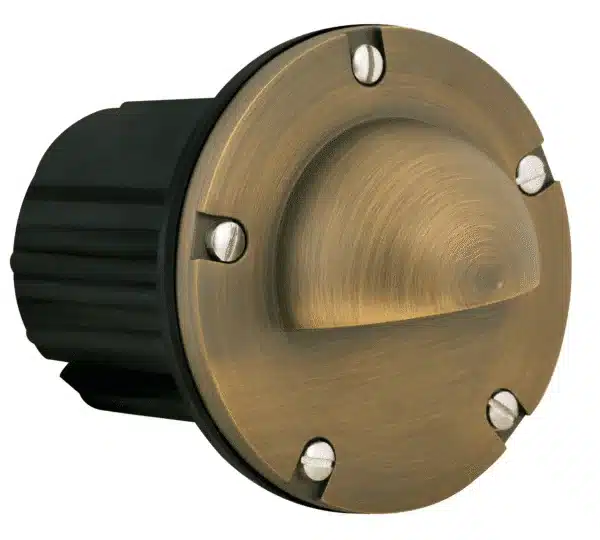

GM-Gun Metal, AB – Antique Bronze

Corona MR-16 Bulb Option

, ,
