Description

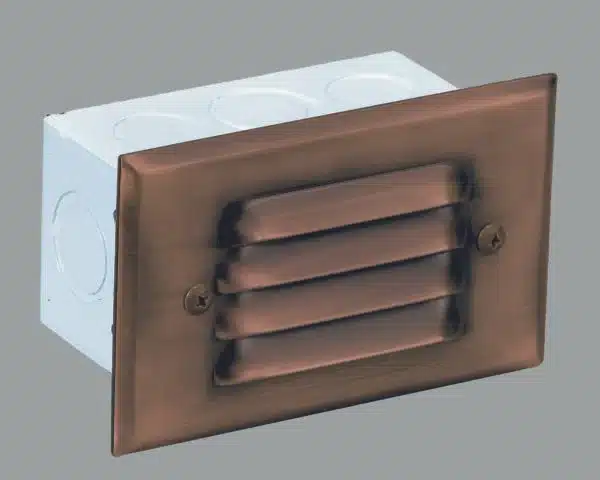

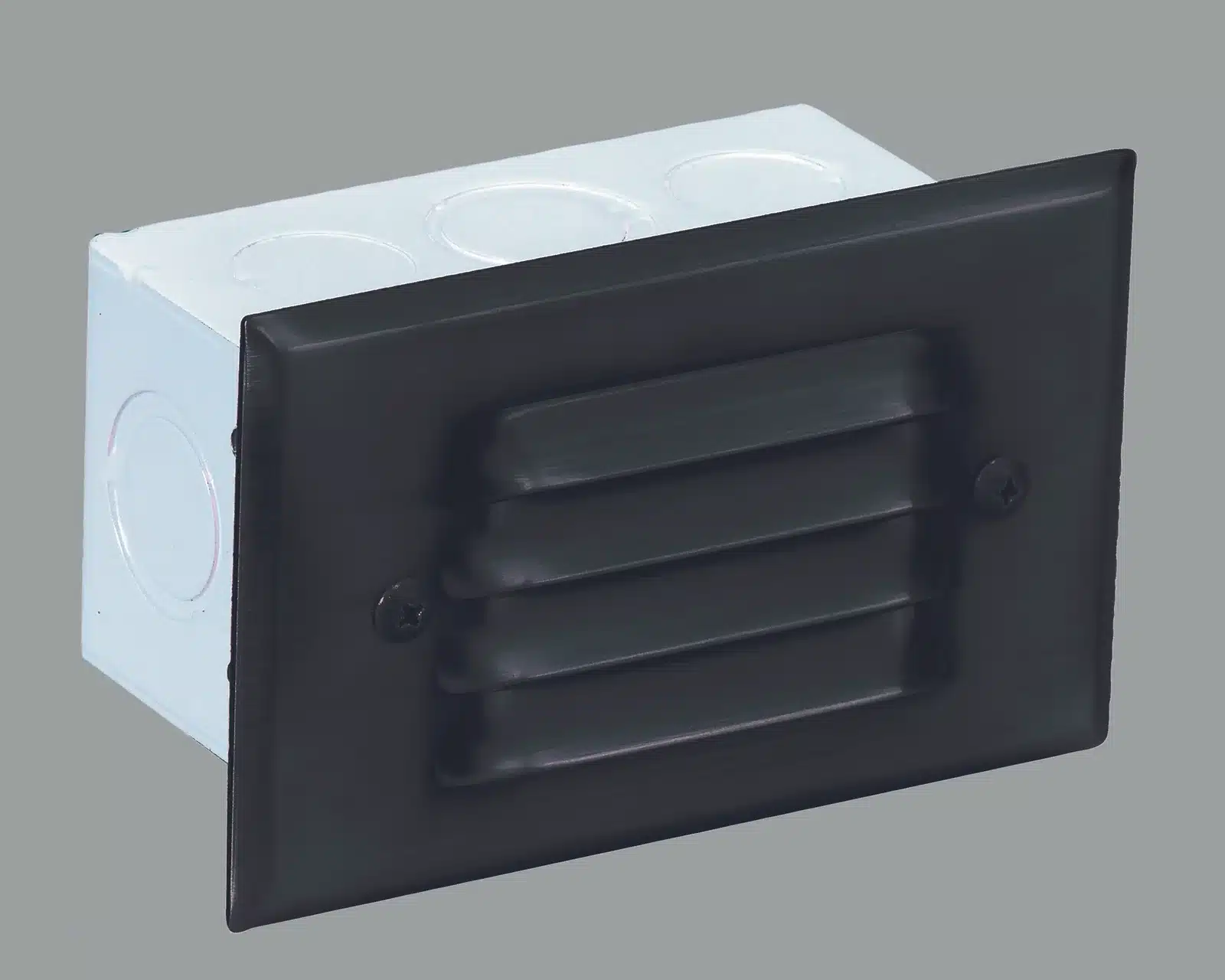

Step Light CL-351
HOUSING: White powder coated steel mount box with SCB (Single Contact Bayonet.) FACE PLATE: Stamped steel available in PB-Polish Brass Plated SI-Silver Plated polyester UV powder coated in BK-Black BZ-Bronze WH-White All with silicone gasket. (CU color is discontinued) LENS: Tempered and heat resistant glass. Lenses are sealed and secured to face plates. LAMP TYPE: 12V, Single Contact Bayonet (SCB) , 18W . MOUNTING: Recessed box to mount into concrete, brick, and masonary. For outdoor use only. WIRING: Fixture is prewired with a 12-inch pigtail wire.
Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices. Alternative steel mount box is available. Size: 3″ width x 1.75″ height x 2″ depth. 30 foot 18-2 direct burial cable available. When ordering, add -30 to end of product number. When ordering, add the 2 letter color code to the end of the product number.
View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions
