Description

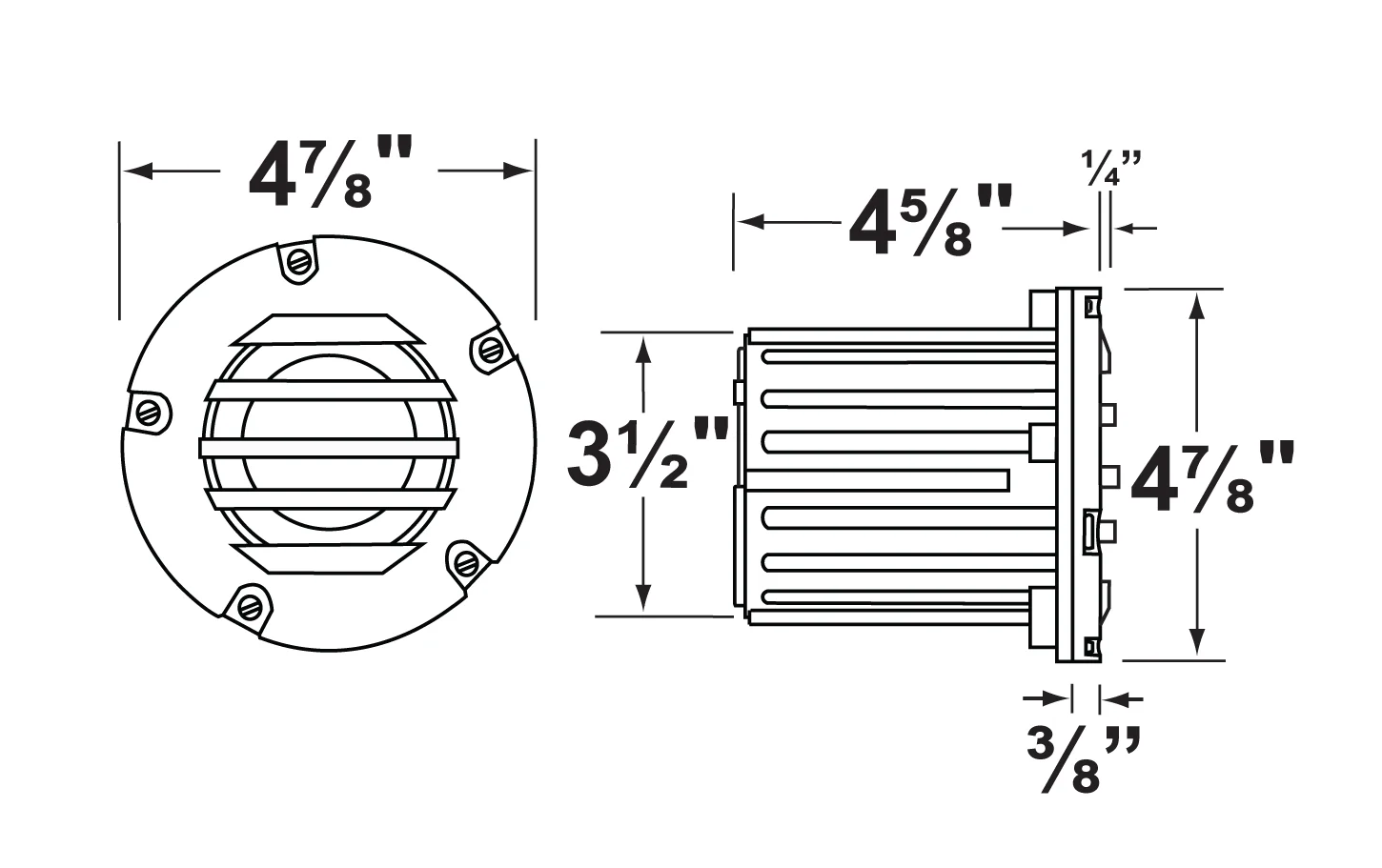

CL-377
Composite Hooded Step Light with Frosted Lens finished in Black Bronze.
Material: Composite
Description: Louvered Step Light with Frosted Lens
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: Surface Mount
Grade: Architectural
Housing : Injection molded composite for high UV stability.
FACEPLATE : Injection molded composite, fitted to housing with silicone “O” ring gasket.
Lens : Frosted and heat resistant glass.
Socket : Top grade adjustable ceramic bi-pin socket with retention clip.
Lamp : 12V, MR-16 LED Available in 5W Bluetooth mesh smart RGB-WW, 3.5W, 5W, 6W or without lamp. See lamp guide, below for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SJT-W water resistant cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting.
Mounting : In-ground direct burial or concrete encasement. For best results when mounting in concrete, use the concrete pour kit (CX-237)
Electrical : Voltage range for BT/LED lamps are 9V-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
WARRANTY : Ten (10) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
