Description

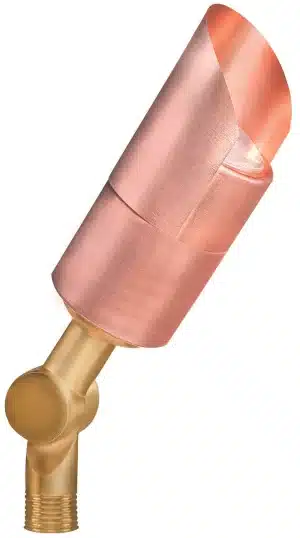

Directional Light Raw Copper CL-514C-RC
HOUSING & SHROUD: Corrosion Resistant Copper. FINISH: RC-Raw Copper. The finish will vary due to the artistic process. LENS: Clear and heat-resistant convex glass. SOCKET: Top-grade ceramic bi-pin socket, with lamp retention clip to securely hold the lamp in place. LAMP: \MR-16 halogen, L-BAB-C20 (20w) standard. Can take up to 35W max. LED lamps are available in 3.5W and 5W-2700K color temperatures. Available in 15º, 45º, and 60º beam spreads for Cree and 45º for Epistar brands.
WIRING: The fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available separately. Universal connector CX-839 or gel-filled wire nut CX-854 may be ordered to Corona Lighting GASKET: Silicone gasket for water-tight sealing KNUCKLE: Adjustable cast brass knuckle with a thumb screw and ½” NPT threaded male hub on bottom. MOUNTING: Standard injection molded with ½” NPT threaded female hub. WARRANTY: Limited lifetime warranty on fixture housing against manufacturer’s defects.
Electrical Notes: Voltage Ranges are 11V-12.5V (12V Halogen) and 9V-17V (LED) Proper greasing and lubrication of threaded parts are suggested for installation. A remote 12 Volt transformer is required.
