Description

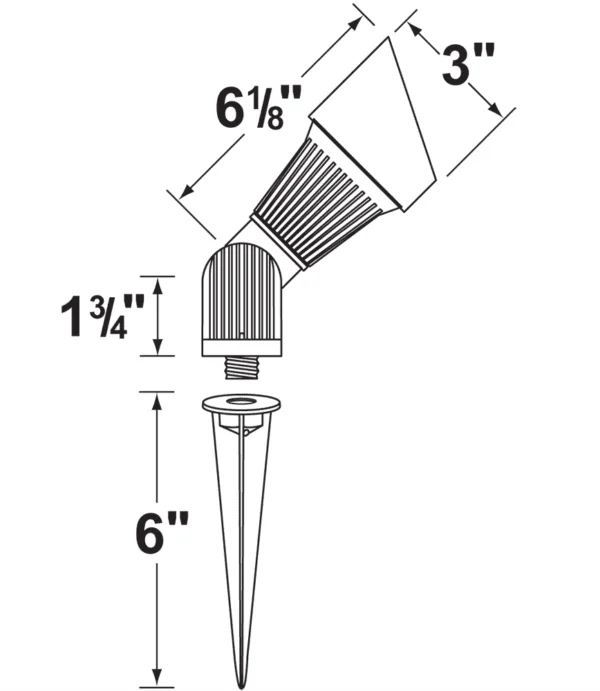

CL-503 Directional Light
HOUSING: Die-cast aluminum. FINISH: Polyester UV powder coated, available in GR-Green, BK-Black, BZ-Bronze, VG-Verde Green, WH-White. LENS: Clear, tempered, and heat resistant glass with silicone gasket. See accessories & parts for special effect lenses, honeycomb louver, and frosted glass lens CX-251-FR. LAMP TYPE: 12V, MR-16 halogen, 50W max. See the lamp guide for LED and color MR-16 lamps. MOUNTING: Adjustable cast aluminum knuckle with 1/2″ NPT, including ground spike. Wire connector excluded. See accessories & parts for optional mounting hardware. WIRING: The fixture is prewired with a 3-foot pigtail of direct burial cable.
A remote 12 Volt transformer is required. See transformers and accessories for a variety of options and choices. When ordering, add the 2 letter color code to the end of the product number.
View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions
