Directional Light CL-531B by Corona Lighting Products

$79.72$111.65

Description

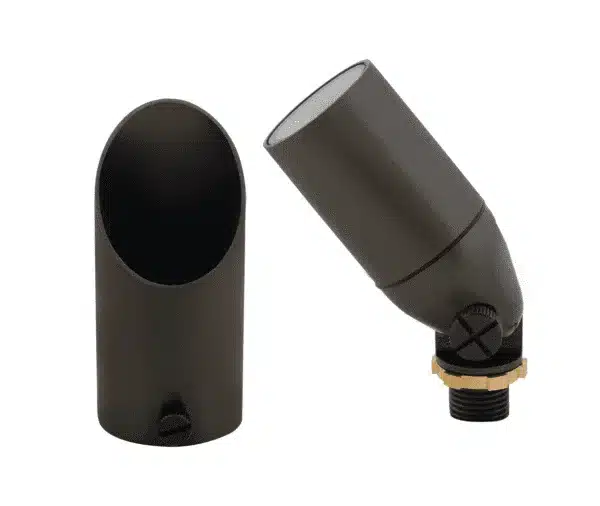

CL-531B Directional Light

HOUSING & SHROUD Corrosion Resistant Cast Brass. The shroud is adjustable and extendable. FINISH: Available in AB-Antique Bronze and also GM-Gun Metal Antique Bronze finish will vary due to the artistic natural process. Natural toning process. LENS: Clear and heat resistant tempered flat glass. SOCKET: Top grade fixed ceramic bi-pin socket, with lamp retention clip to securely hold the lamp in place. LAMP: 12V, MR-11, 35W max. L-FTB-20 (20w) standard. LED is available in 3W-3000k color temperature.

WIRING: Fixture is prewired with a 5-ft 18-2 SPT2-W direct burial cord. Wire connector available separately. Universal connector CX-839 or gel filled wire nut CX-854 may be ordered to Corona Lighting GASKET: Silicone gasket for water tight sealing KNUCKLE: Adjustable cast brass knuckle with a thumb screw and ½” NPT threaded male hub on bottom. MOUNTING: Standard injection molded with ½” NPT threaded female hub.


Electrical Notes: Voltage Ranges are:11V-12.5V (12V Halogen) 9V-17V (LED) Proper greasing and lubrication theaded parts is suggested for installation. A remote 12 Volt transformer is required. Advanced Features: Extendable shroud for beam spread adjustment.


View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions



Additional information

Weight 2.5 lbs
Corona Finish Options

GM – Gun Metal, AB – Antique Bronze

Corona Bulb Options

,
