Description

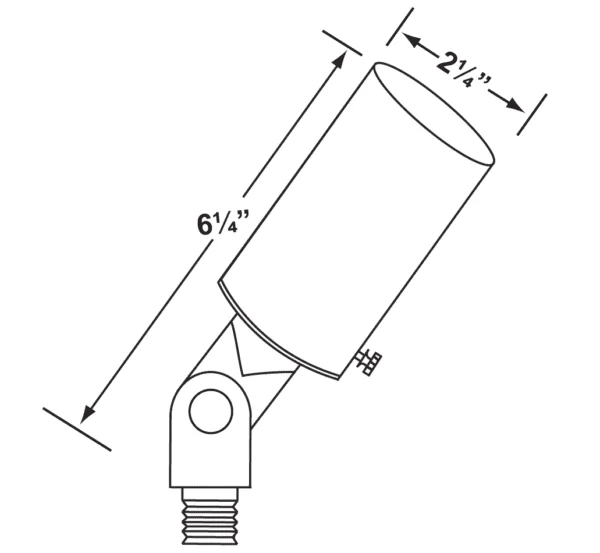

CL-540C-RC Directional Light

HOUSING & SHROUD Corrosion Resistant Solid Copper. FINISH: RC- Raw Copper. Will age gradually over time. LENS: Clear and heat resistant tempered flat glass. SOCKET: Top grade loose ceramic bi-pin socket, spring loaded design. LAMP: 12V, MR-16 halogen, 35W max. L-BAB-C20 (20w) standard. LED lamps are available in 3.5W and 5W-2700K color temperatures. Available in 15º, 45º, and 60º beam spreads for Cree and 45º for Epistar brands. WIRING: The fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available separately. Universal connector CX-839 or gel filled wire nut CX-854 may be ordered from Corona Lighting

GASKET: Silicone double gasket for water tight sealing KNUCKLE: Adjustable cast brass knuckle with a thumb screw and ½” NPT threaded male hub on bottom. MOUNTING: Standard injection molded with ½” NPT threaded female hub. WARRANTY: Limited lifetime warranty on fixture housing against manufacturer’s defects.

Electrical Notes: Voltage Ranges are 11V-12.5V (12V Halogen) and 9V-17V (LED) Proper greasing and lubrication of threaded parts are suggested for installation. A remote 12 Volt transformer is required.
