Description

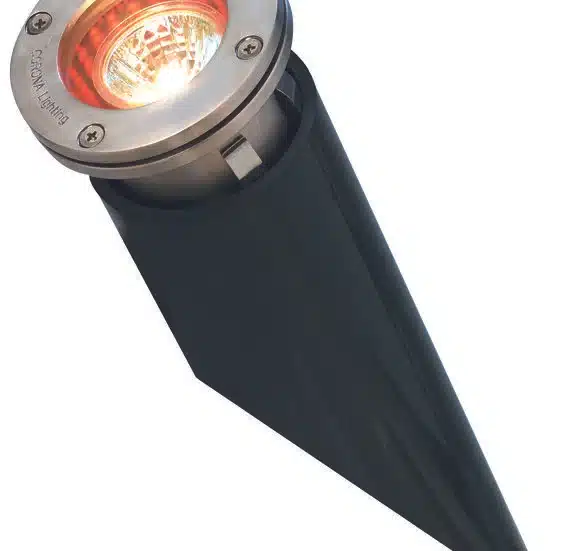

CL-201 Well Light

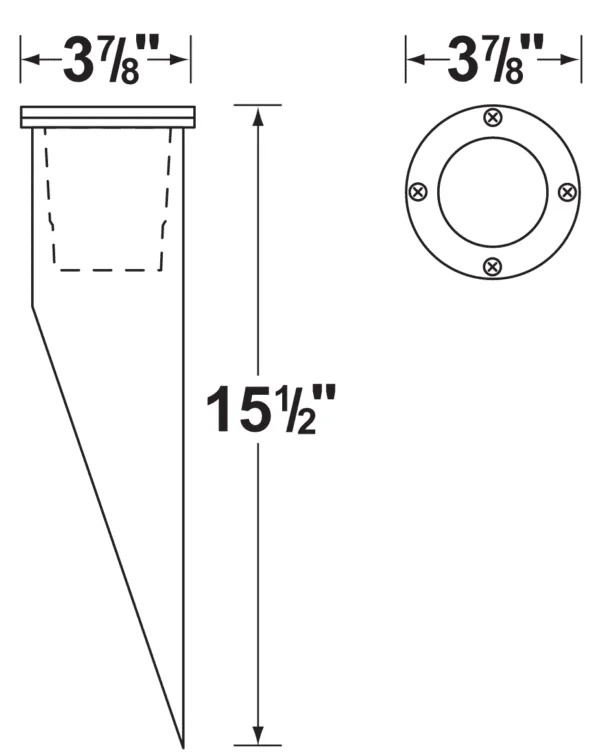

HOUSING: Cast brass fixture mounted with stainless steel retention clips inside PVC sleeve. FACE PLATE FINISH: AB-Antique Bronze. Natural toning process. AB finish will vary due to the artistic process. (The stainless steel grade is 316) LENS: Clear, tempered, and heat resistant convex glass. Extra flat lens included. SOCKET: Top grade ceramic bi-pin socket with retention clip. LAMP: 12V, MR-16 halogen, 50W max. L-BAB-C20 (20w) standard. See the lamp guide for available 3.5W and 5W MR-16 LED lamps.

GASKET: Silicone “0” ring seals the faceplate to the housing providing weather tight protection. WIRING: The fixture is prewired with a 3-ft 18-2 SJT-W direct burial cord. Wire connector available separately. Gel filled wire nut CX-854 may be ordered from Corona Lighting. MOUNTING: In-ground direct burial or concrete encasement. WARRANTY: Limited lifetime warranty on brass fixtures against manufacturer’s defects.

A remote 12 Volt transformer is required. (See transformers and accessories for a variety of options and choices.) The voltage range for Halogen lamps is 11V-12.5V. The voltage range for LED lamps is 9V-17V.

View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions
