Well Lights by Corona Lighting Product# : CL-224-AB, CL-224-SS

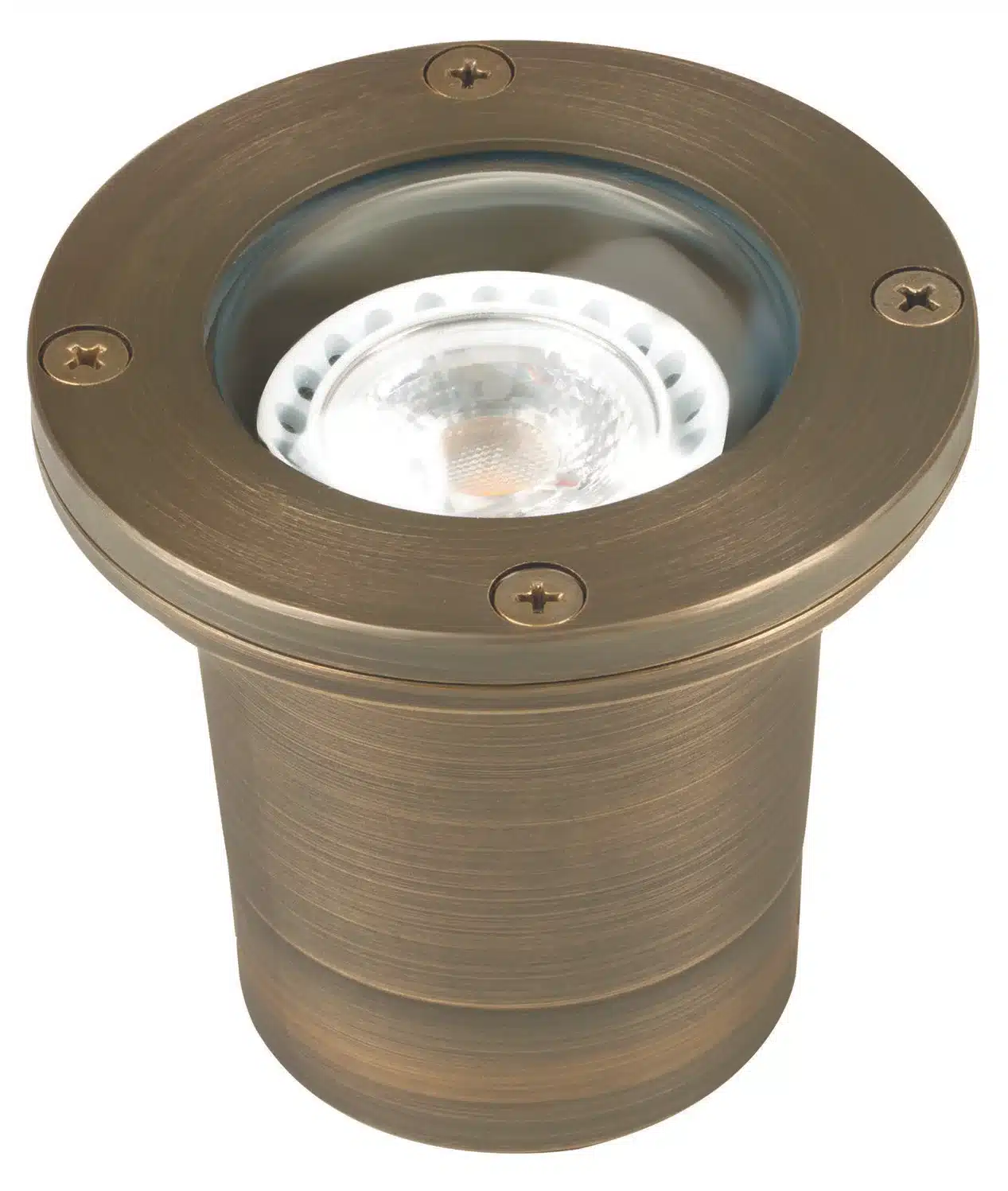

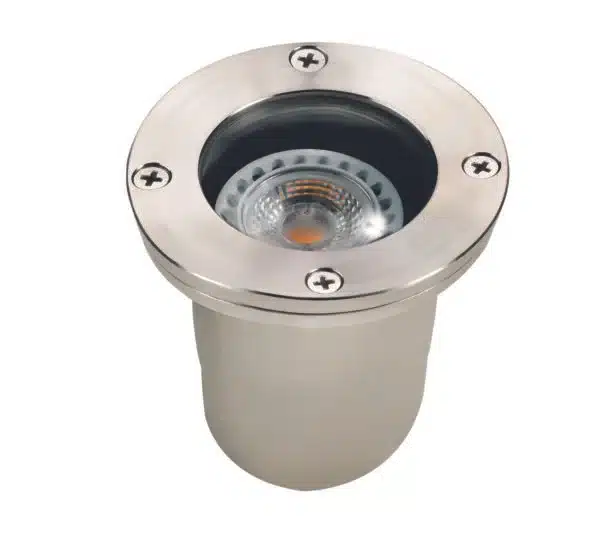

HOUSING: Cast brass. FINISH: AB-Antique Bronze. Natural toning process. AB finish will vary due to artistic process. SS-Stainless Steel. (The stainless steel grade is 316) LENS: Clear, tempered and head resistant convex glass. Extra flat lens included SOCKET: Top grade ceramic bi-pin socket with retention clip. LAMP: 12V, MR-16 halogen, 50W max. L-BAB-C20 (20w) standard. See below for available LED lamps. GASKET: Silicone “0” ring seals faceplate to housing providing weather tight protection. WIRING: Fixture is pre-wired a 3-ft 18-2 SJT-W direct burial cord. Wire connector available separately. Gel filled wire nut CX-854 may be ordered to Corona Lighting. MOUNTING: In-Ground direct burial or concrete encasement. WARRANTY: Limited lifetime warranty on brass fixture against manufacturer’s defects. Fixture is supplied with 20W MR-16 lamp. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices. Voltage range for Halogen lamps : 11V-12.5V Voltage range for LED lamps: 9V-17V View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions

Additional information

Weight4 lbs
Corona Face Plate Finish options

Stainless Steel, Antique Bronze

Corona MR-16 Bulb Option

MR-16 20 Watt Halogen, MR-16 3.5 Watt 2700K 45°, No Bulb, MR-16 5 Watt 2700K 45°
