Description

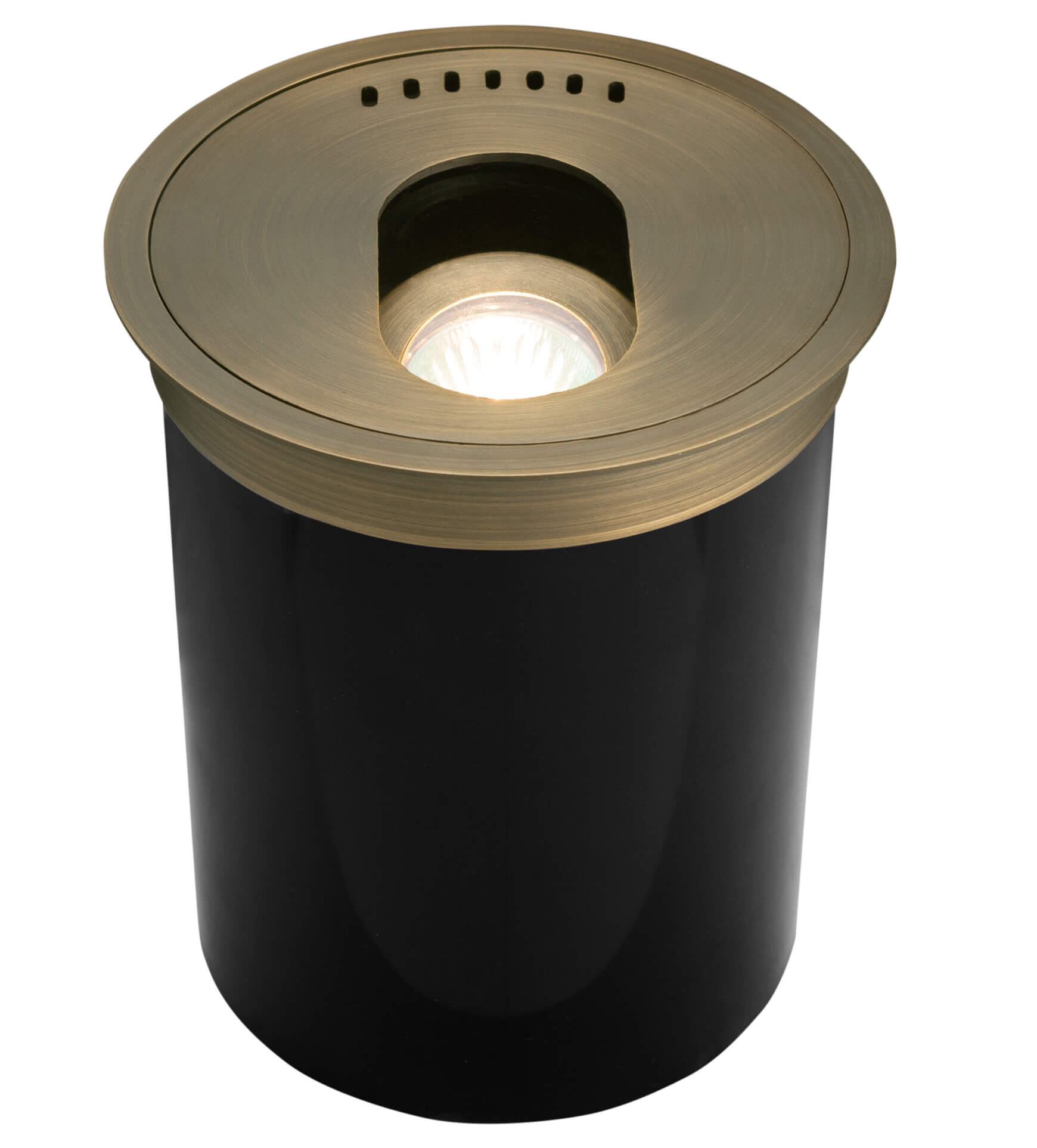

CL-322B-AB Well Light

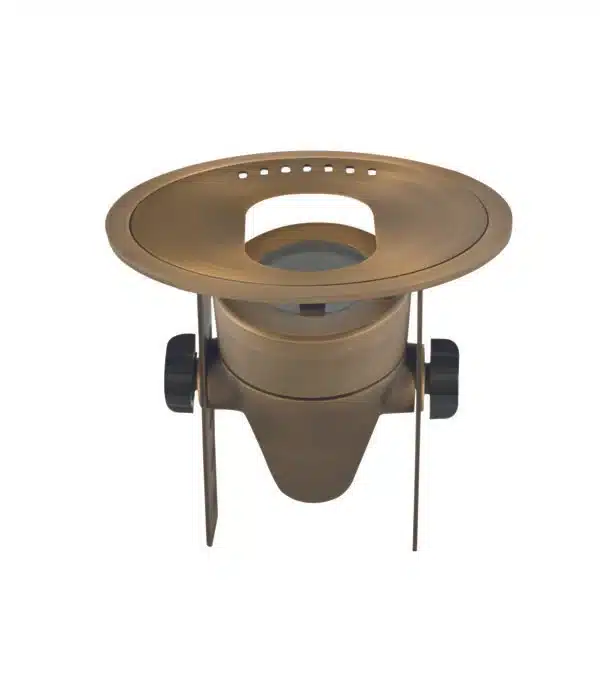

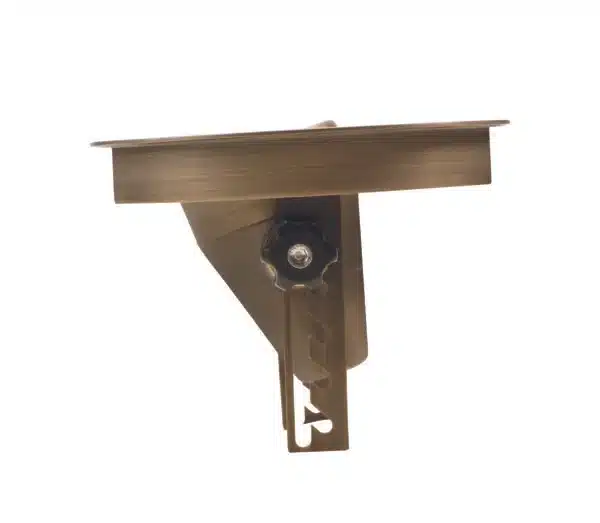

HOUSING: Cast brass adjustable fixture with aiming mechanism, suspended inside PVC sleeve. FACEPLATE: Cast brass with heat-dissipative holes. FACEPLATE FINISH: AB-Antique Bronze. Natural toning process. AB finish will vary due to the artistic process LENS: Clear and heat-resistant flat glass. SOCKET: Top-grade fixed ceramic bi-pin socket. LAMP: 12V, MR-16 halogen, 50W max. L-BAB-C20 (20w) standard. See the specification sheet for available LED lamps. GASKET: Silicone “0” ring gasket on the adjustable fixture for water-tight sealing.

MOUNTING: In-ground direct burial or concrete encasement WIRING: The fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available separately. Gel-filled wire nut CX-854 may be ordered to Corona Lighting WARRANTY Limited lifetime warranty on fixture against manufacturer’s defects.

Electrical Notes: Voltage Ranges are: 11V -12.5 (halogen) and 9V-17V(LED). A remote 12 Volt transformer is required. Advanced Features: Adjustable fixture with aiming mechanism suspended in PVC sleeve.

View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions
