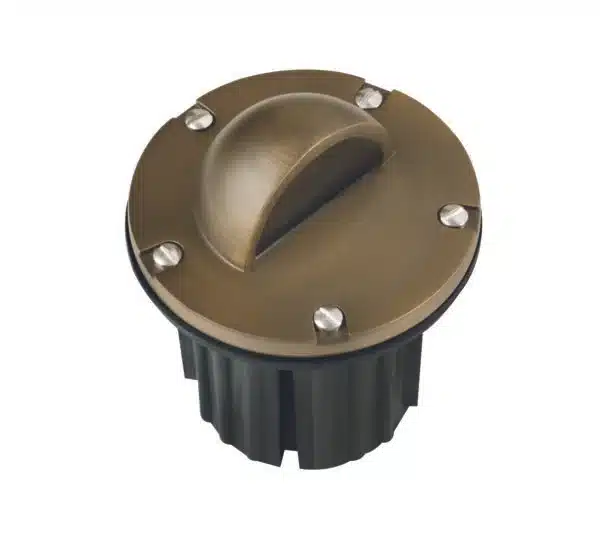

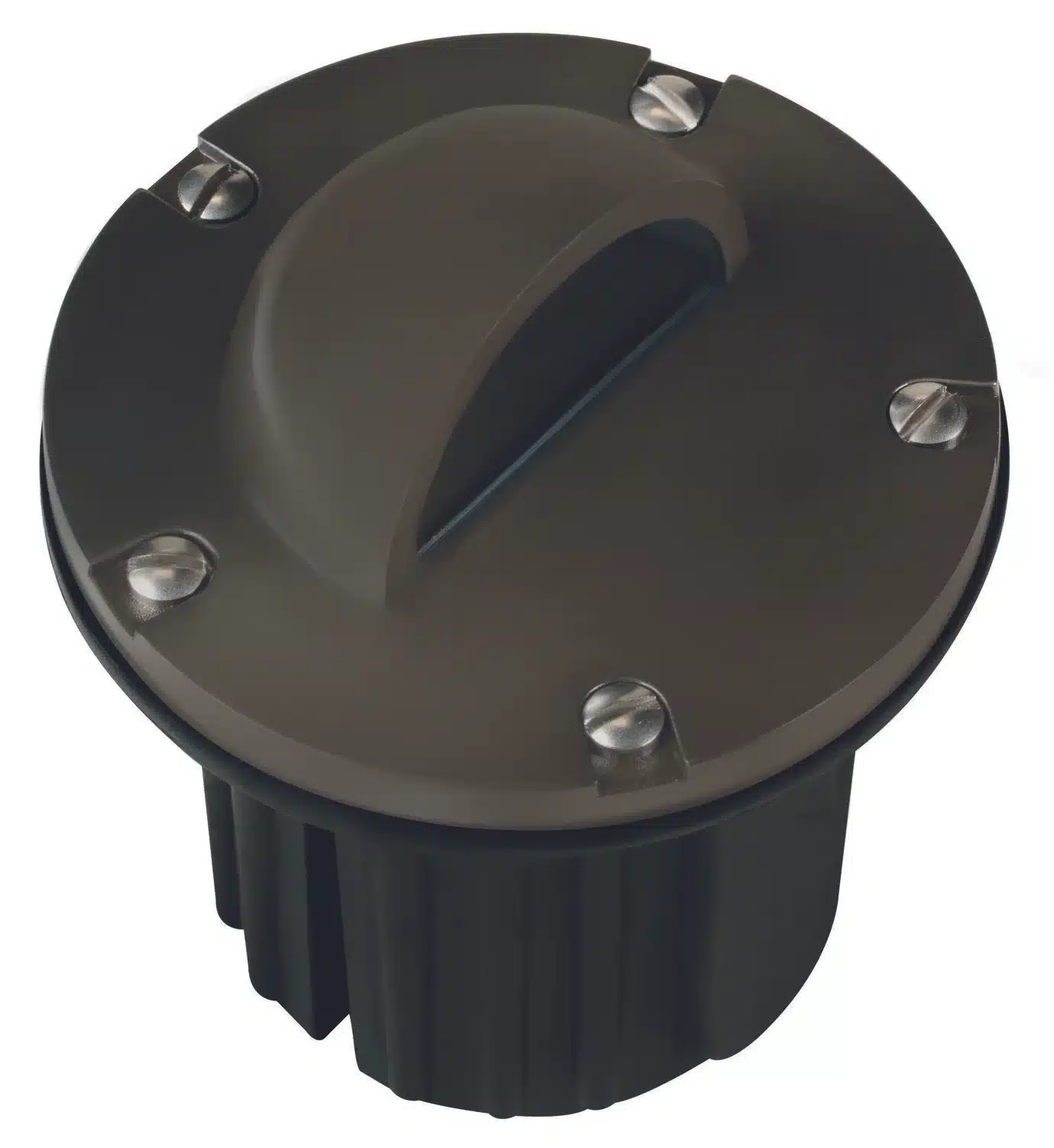

Well Light CL-319B by Corona Lighting Products

$122.36$160.47

Description

CL-319B Well Light

HOUSING: Injected molded composite for high UV stability. FACEPLATE: Diecast brass, fitted to housing with silicone “O” ring gasket. FACEPLATE FINISH: AB-Antique Bronze. Natural toning process. AB finish will vary due to the artistic process of GM-Gun Metal. Natural toning process. GM finish will vary due to the artistic process LENS: Clear and heat-resistant flat glass. SOCKET: Top-grade adjustable ceramic bi-pin socket with retention clip click to enlarge the image and Teflon-jacketed wire lead. LAMP: 12V, MR-16 halogen, 50W max. L-BAB-C20 (20w) standard. See the specification sheet for available LED lamps.

GASKET: Silicone “0” ring seals the faceplate to the housing providing weather-tight protection. MOUNTING: In the ground direct burial or concrete encasement WIRING: The fixture is prewired with a 3-ft 18-2 SJT-W direct burial cord. Wire connector available separately. Gel-filled wire nut CX-854 may be ordered to Corona Lighting WARRANTY Limited lifetime warranty on fixture Brass face plate and ten (10) years on housing against manufacturer’s defects.


Electrical Notes: Voltage Ranges are: 11V -12.5 (halogen) and 9V-17V(LED). A remote 12 Volt transformer is required. Advanced Features: The Fixture’s socket can be tilted ± 25° for adjustable light aiming. Well-Socket-tilt_small-yard-illuminations


View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions


Additional information

Weight 4 lbs
Corona Face Plate Finish options

Gun Metal, Antique Bronze

Corona MR-16 Bulb Option

, ,
