Description

Well Light CL-323B by Corona Lighting Products

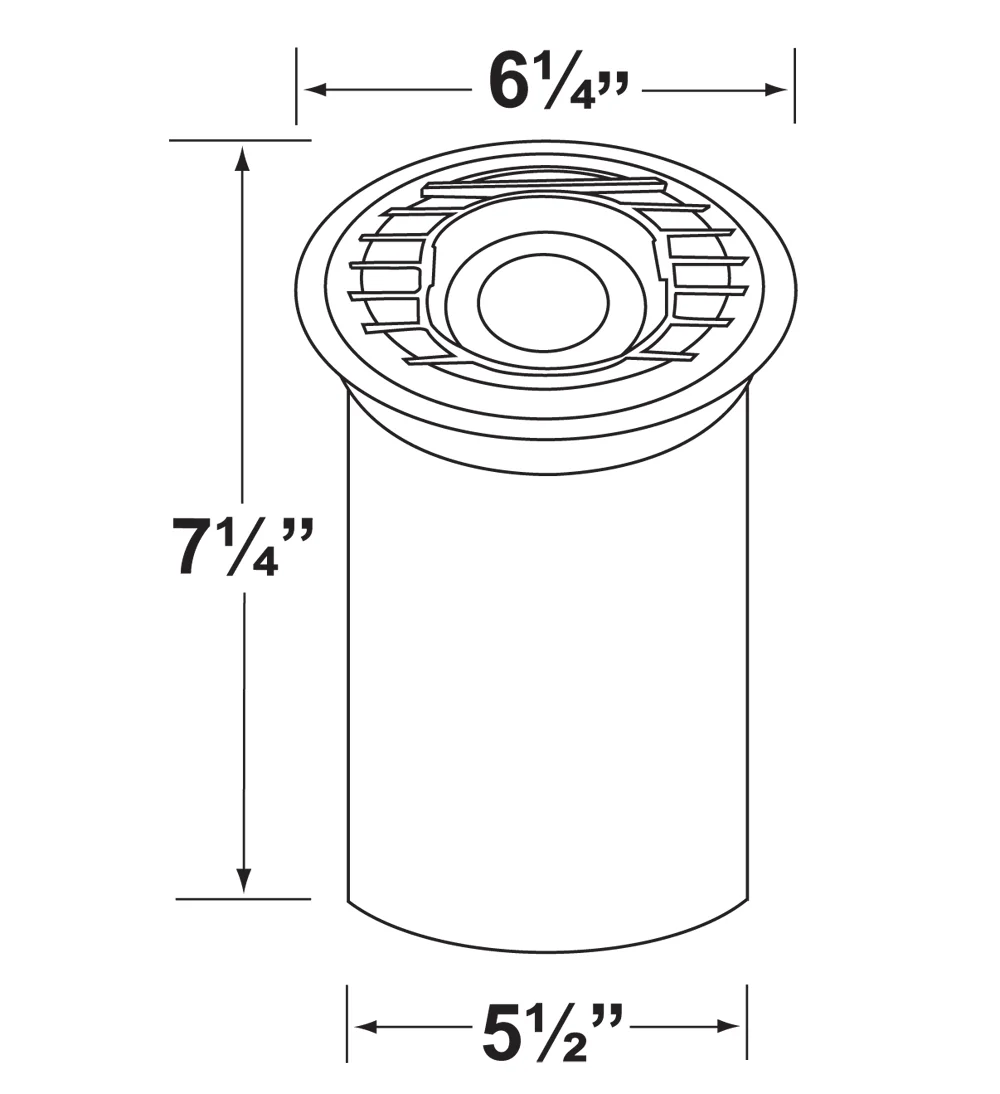

HOUSING: Cast brass adjustable fixture with aiming mechanism, suspended inside PVC sleeve. FACEPLATE: Cast brass with heat dissipative holes. FACEPLATE FINISH: AB-Antique Bronze. Natural toning process. AB finish will vary due to artistic process

LENS: Clear and heat resistant flat glass. SOCKET: Top grade fixed ceramic bi-pin socket. LAMP: 12V, MR-16 halogen, 50W max. L-BAB-C20 (20w) standard. See specification sheet for available LED lamps. GASKET: Silicone “0” ring gasket on adjustable fixture for water tight sealing.

MOUNTING: In-ground direct burial or concrete encasement WIRING: Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Gel filled wire nut CX-854 may be ordered to Corona Lighting WARRANTY Limited lifetime warranty on fixture against manufacturer’s defects.

Electrical Notes: Voltage Ranges are: 11V -12.5 (halogen) 9V-17V(LED) . Remote 12 Volt transformer is required. Advanced Features: Adjustable fixture with aiming mechanism suspended in PVC sleeve.

View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions
