Description

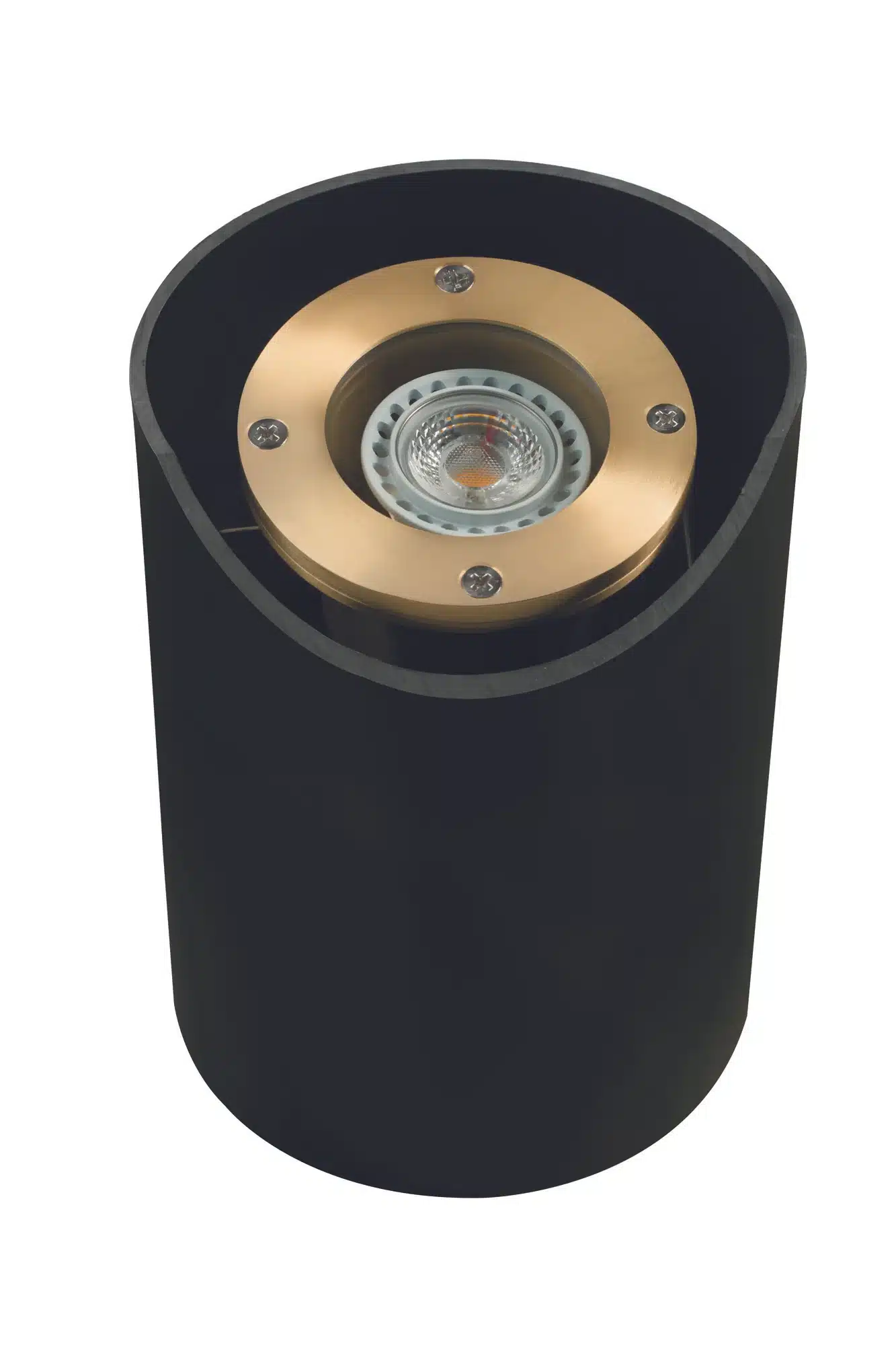

CL-331 Well Light
HOUSING: Solid brass fixture, suspended inside a reversible flat or angled cut PVC sleeve, provides in-ground support. The fixture is adjustable inside the PVC sleeve for light aiming. FINISH: BR-Natural Brass fixture. PVC sleeve is available in black only. LENS: Clear, tempered, and heat-resistant glass with a silicone gasket. See accessories & parts for special effect lenses, honeycomb louver, and frosted glass lens CX-380-FR LAMP TYPE: 12V, MR-16 halogen, 50W max. See the lamp guide for energy-efficient LED and color MR-16 lamps.
MOUNTING: In-ground direct burial or concrete encasement. Use gravel for proper drainage. Angle cut end required to be installed 3″ above the ground. WIRING: The fixture is prewired with a 3-foot pigtail of direct burial cable. Other lengths of pigtail cables are available.
A remote 12 Volt transformer is required. See transformers and accessories for a variety of options and choices.
View/Download Printable Specification Sheet View/Download Printable Assembly/Installation Instructions
